使用的环境为Ubuntu 20.04LTS

Email发送环境配置#

1、软件安装#

sudo apt-get install msmtp

sudo apt-get install mutt

2、配置msmtp#

vim ~/.msmtprc

account default
host smtp.163.com
user kozakemi
from kozakemi@163.com
password VIUXXXXXXXXXXXXS
auth login
tls off
logfile ~/.msmtp.log

创建msmtp的日志文件

touch ~/.msmtp.log

3、配置muttrc#

vim ~/.muttrc

set envelope_from=yes
set use_from=yes
set from=kozakemi@163.com
set realname="kozakemi"
set sendmail="/usr/bin/msmtp"

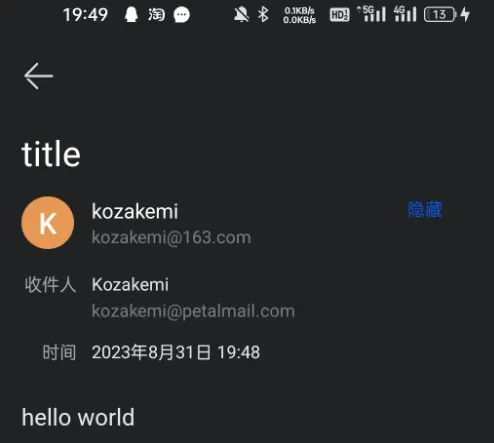

4、测试邮件发送环境#

echo "hello world" | mutt -s "title" kozakemi@petalmail.com

首先，查看日志~/.msmtp.log

9月 01 09:13:56 host=smtp.163.com tls=off auth=on user=kozakemi from=kozakemi@163.com recipients=kozakemi@petalmail.com mailsize=516 smtpstatus=250 smtpmsg='250 Mail OK queued as zwqz-smtp-mta-g4-3,_____wCHb4TTOvFkx9JzAw--.10537S2 1693530836' exitcode=EX_OK

如果是smtpstatus=250,那么问题不大，检查邮箱

Shell告警脚本书写#

1、通过top命令获取的消息#

mem#

top - 19:53:48 up  5:48,  2 users,  load average: 0.00, 0.00, 0.00
任务: 292 total,   1 running, 291 sleeping,   0 stopped,   0 zombie
%Cpu(s):  0.0 us,  0.2 sy,  0.0 ni, 99.8 id,  0.0 wa,  0.0 hi,  0.0 si,  0.0 st
MiB Mem :   3876.4 total,   1182.5 free,   1084.6 used,   1609.3 buff/cache
MiB Swap:   2048.0 total,   2048.0 free,      0.0 used.   2507.1 avail Mem

 进程号 USER      PR  NI    VIRT    RES    SHR    %CPU  %MEM     TIME+ COMMAND
      1 root      20   0  106024  13024   8344 S   0.0   0.3   3:12.58 systemd

从其中可以看到内存为MiB Mem :，将3876.4 total, 1182.5 free,两者做差再除total得到内存占用率mem_p

mem_total=$(top -b -n 1 | grep "MiB Mem :" | grep -o ".*total"| grep -o -G "[0-9.]\+")
mem_free=$(top -b -n 1 | grep "MiB Mem :" | grep -o "total.*free"| grep -o -G "[0-9.]\+")
dl=$(echo "$mem_total-$mem_free" | bc)
mem_p=$(echo "scale=1;$dl*100/$mem_total" | bc)

使用top -b -n 1保证只取一次

grep “MiB Mem :“选中内存行

grep -o ”.*total”选中total及以前字符

[0-9.]选中数字和小数点，也就是 3876.4

其中bc是一个计算器，由于shell本身没有计算浮点数的能力，故借助bc计算

cpu#

cpu最简单，取%Cpu(s)行，取0.0 us,数字就是当前占用站处理器百分比

cpu_us=$(top -b -n 1 | grep "%Cpu(s)" | grep -o ".*us"| grep -o -G "[0-9.]\+")

2、使用df命令判断根分区的空间使用情况#

首先观察df /指令的执行结果

kozakemi@kozakemi-virtual-machine:~$ df /
文件系统           1K-块    已用     可用 已用% 挂载点
/dev/sda5      102107096 9829744 87044456   11% /

shell如下：

disk_p=$(df / | grep -o ".*%" |grep -o "\<[0-9]*\>" |  tail -n 1)

首先观察df / | grep -o ".*%" |grep -o "\<[0-9]*\>"的执行结果

kozakemi@kozakemi-virtual-machine:~$ df / | grep -o ".*%" |grep -o "\<[0-9]*\>"
102107096
9829744
87044456
11

这里用到了tail查看文件尾部内容,-n 1 表示倒数第一行，11 正是需要的数值

故完整指令

df / | grep -o ".*%" |grep -o "\<[0-9]*\>" |  tail -n 1

3、使用if语句判断是否报警#

数值大小判断

declare -r cpu_threshold=90
declare -r mem_threshold=80
declare -r disk_threshold=90
if [[ $(echo "$mem_p > $mem_threshold" | bc) -eq 1 || $(echo "$cpu_us > $cpu_threshold" | bc) -eq 1 || $(echo "$disk_p > $disk_threshold" | bc) -eq 1 ]]; then
		#echo "异常"

else
        #echo "正常"
fi

使用||表示or

当上条件任意一条件出发便发出警报，向日志写入

4、使用echo命令，将日志写入log.txt文件#

echo "[$current_date] mem_p:$mem_p% cpu_us:$cpu_us% disk_p:$disk_p% warning !" >> log.txt

5、如果报警，将发送消息到email#

echo "[$current_date]异常资源占用率，内存占用$mem_p%,处理器占用$cpu_us%，磁盘空间占用$disk_p%,超出已设定阈值$ctp_threshold%，请检查服务器运行状况" | mutt kozakemi@petalmail.com -s "服务器运行异常"

6、编写服务#

目录位于 /etc/systemd/system/ 创建文件sysinfo_email.service

[Unit]
Description=sysinfo_email

[Service]
ExecStart= /bin/bash /home/kozakemi/test.sh
#set basdcompat
User=kozakemi

7、编写Timer单元定时服务#

创建文件 sysinfo_email.timer

[Unit]
Description=sysinfo_email timer

[Timer]
OnBootSec=3min
OnUnitActiveSec=3min
Unit=sysinfo_email.service

[Install]
WantedBy=timers.target

8、启用定时服务#

sudo systemctl start sysinfo_email.timer

测试无误后使用enable设置开机自启

sudo systemctl enable sysinfo_email.timer

使用以下命令持续观察sysinfo_email.service的触发状态

sudo watch -n 5 systemctl status sysinfo_email.timer

测试#

使用stress命令对系统处理器进行压测

stress --cpu 2 --timeout 480

处理器核数2 持续时间480秒

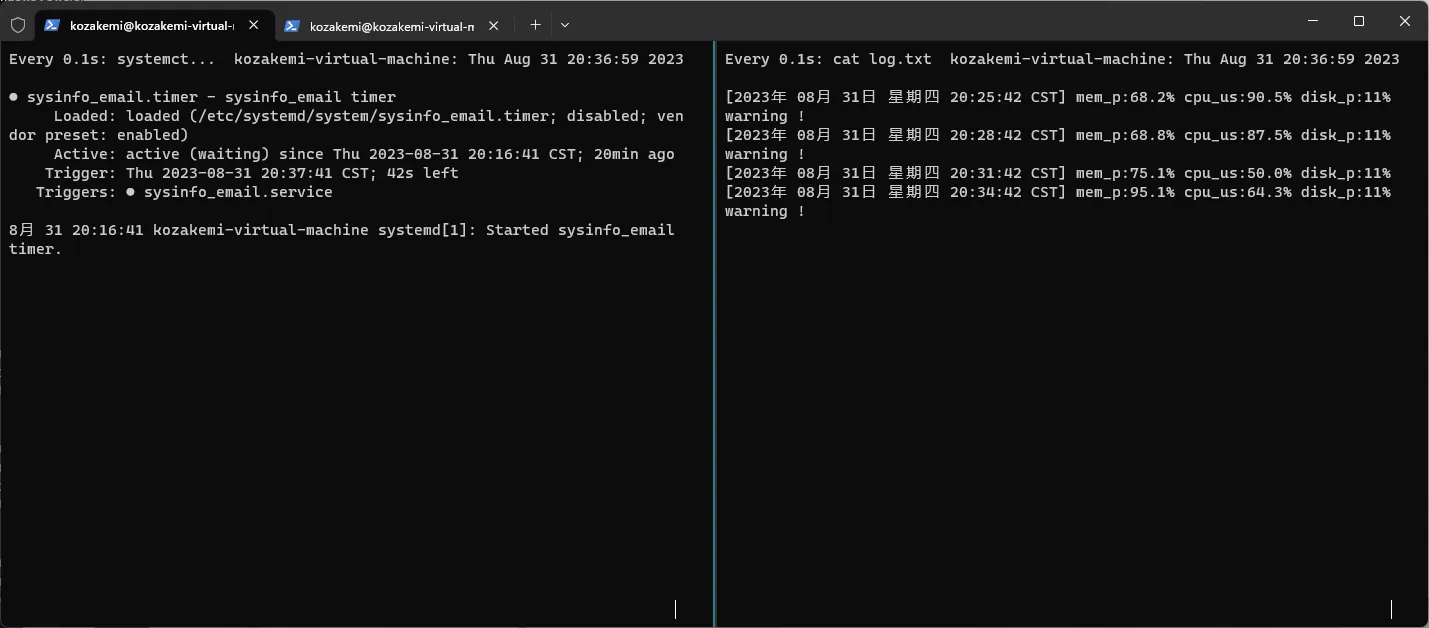

运行状态及日志#

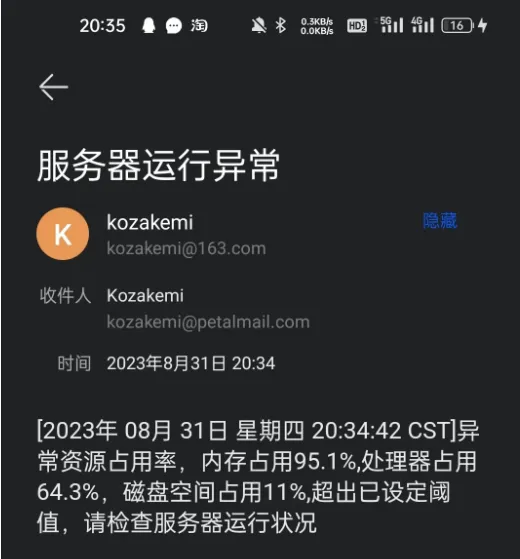

邮箱告警信息#

完整代码#

sysinfo_email.service

[Unit]
Description=sysinfo_email

[Service]
ExecStart= /bin/bash /home/kozakemi/test.sh
#set basdcompat
User=kozakemi

sysinfo_email.timer

[Unit]
Description=sysinfo_email timer

[Timer]
OnBootSec=3min
OnUnitActiveSec=3min
Unit=sysinfo_email.service

[Install]
WantedBy=timers.target

test.sh

#!/bin/bash
cd $HOME
mem_total=0.0
mem_free=0.0
declare -r cpu_threshold=80
declare -r mem_threshold=90
declare -r disk_threshold=90
mem_total=$(top -b -n 1 | grep "MiB Mem :" | grep -o ".*total"| grep -o -G "[0-9.]\+")
mem_free=$(top -b -n 1 | grep "MiB Mem :" | grep -o "total.*free"| grep -o -G "[0-9.]\+")
dl=$(echo "$mem_total-$mem_free" | bc)
mem_p=$(echo "scale=1;$dl*100/$mem_total" | bc)
cpu_us=$(top -b -n 1 | grep "%Cpu(s)" | grep -o ".*us"| grep -o -G "[0-9.]\+")
#root_disk_num=$(mount | grep " on / type"| grep -o ".*on" |grep -o ".*\<[a-z]*[0-9]\>")
disk_p=$(df / | grep -o ".*%" |grep -o "\<[0-9]*\>" |  tail -n 1)
echo "$mem_p"
echo "$cpu_us"
echo "$disk_p"
current_date=$(date)
#if [ $(echo "$mem_p < 0.4" | bc) -eq 1 ] || [ $(echo "$cpu_us < 0.4*100" | bc) -eq 1 ]; then
if [[ $(echo "$mem_p > $mem_threshold" | bc) -eq 1 || $(echo "$cpu_us > $cpu_threshold" | bc) -eq 1 || $(echo "$disk_p > $disk_threshold" | bc) -eq 1 ]]; then
        echo "[$current_date]异常资源占用率，内存占用$mem_p%,处理器占用$cpu_us%，磁盘空间占用$disk_p%,超出已设定阈值，请检查服务器运行状况" | mutt kozakemi@petalmail.com -s " 服务器运行异常"
        echo "[$current_date] mem_p:$mem_p% cpu_us:$cpu_us% disk_p:$disk_p% warning !" >> log.txt
else
        #echo "正常"
        echo "[$current_date] mem_p:$mem_p% cpu_us:$cpu_us% disk_p:$disk_p%" >> log.txt
fi
#echo "[$current_date] mem_p:$mem_p% cpu_us:$cpu_us% disk_p:$disk_p%" >> sysinfo.log
